Transpiring, Recyclable, Energy Efficient, Stormwater System

Trees dissipate energy, slow the flow, reduce erosion, infiltrate and cool the water, cool the air, and sequester carbon.

by Pete Kallin

I picked a lot of blueberries last week — low-bush on top of Vienna Mountain, the newest addition to Kennebec Highlands, and high-bush along a few spots along the shoreline of Long Pond. Unfortunately, the week has also involved a lot of out-of-town travel, a few medical appointments, some meetings, and a memorial for a good friend. As a result, I didn’t get as much time outside as I usually do so I have decided to update a Watershed Wisdom column I first wrote a decade ago that is still quite relevant.

Maine has a strong Shoreland Zoning Act that emphasizes protecting the integrity of the vegetation within 250 feet of a Great Pond, especially the 100 feet closest to the water (75 feet for most wetlands). The rules are a bit complicated and often violated, sometimes inadvertently. A few years ago, there were some serious violations in Naples, Me., where the Town received fines in excess of $700,000.

Closer to home, cases have recently occurred on Great Pond (Belgrade and Rome) and Salmon Lake. In these cases the violator often argues, “It’s just a tree! I’ll plant new ones.” Unfortunately it takes decades to replace a mature tree. And a tree is more than just a piece of standing wood with leaves on it. It is actually a remarkable stormwater control system that is better described as the Transpiring, Recyclable, Energy Efficient, Stormwater System, or TREES for short. This key component of Mother Nature’s basic watershed design is a wonder of efficiency, and coupled with vegetated wetland buffers, does an outstanding job of protecting the water quality of lakes and streams.

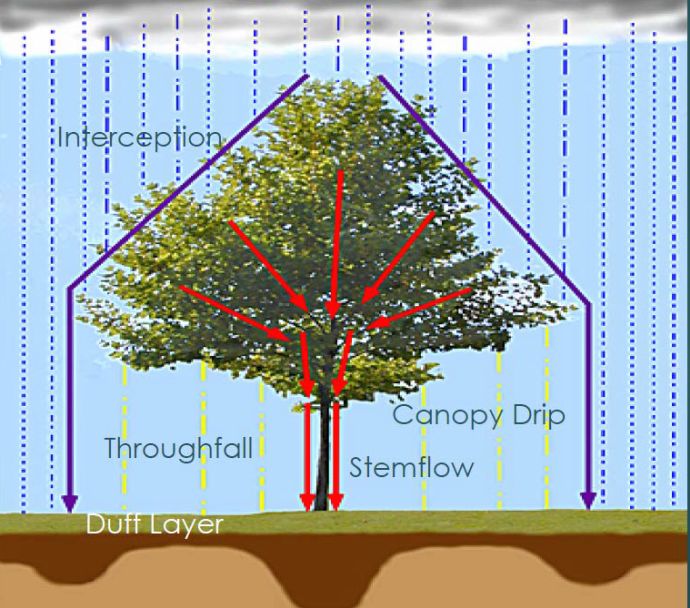

As anyone who has ever taken shelter under a tree during a rainstorm knows, trees do a great job of protecting the land under them. When the large raindrops hit the vegetation, they are broken up into many little droplets that continue to fall towards the ground, breaking up into ever smaller droplets as they hit more layers of vegetation, a process engineers call “energy dissipation.” The large surface area of the leaves and small branches becomes coated with water that never reaches the ground, a process hydrologists call “interception.”

The water that continues to fall to the ground ends up as a fine mist, or slowly moving drops, which drip off the lower parts of the tree. This moisture falls gently onto a thick spongy “duff layer” of decomposing leaves and pine needles that comprises the forest floor, soaking in slowly. As the runoff filters slowly through the forest floor, it continues to soak into the sediments below where it enters the groundwater table. A substantial portion is taken up through the roots of the plants and transpires directly back to atmosphere via evapotranspiration from the leaves. Except in very large rain events, very little stormwater actually runs off from a forest.

Contrast this with rain that falls on a plowed field, paved surface, or a dusty camp road. The raindrop hits the ground at high speed, with enough kinetic energy to erode the surface of the soil and splatter up muddy water. This water begins to puddle up and move down the hill, carrying dirt, manure, or other pollutants such as oil or grease along with it. If the surface topography is steep, the stormwater gains momentum and continues to erode, picking up an even higher pollutant load.

Typically the stormwater from these developed areas is routed rapidly through ditches and pipes directly to the nearest stream, river, or lake. The turbulent motion generates kinetic energy that allows the flowing water to carry a large load of suspended sediments. When the polluted water eventually reaches a large pond or lake, the velocity will slow and the suspended sediment will settle out. The coarser sediments settle rapidly near the shore forming a delta near the inlet — check out the north end of Long Pond where Route 27 drains into the lake at Tracy Cove — but the finer sediments (and attached pollutants) move out into the lake, creating turbidity, or cloudiness. These fine sediments settle very slowly, spreading pollutants and nutrients such as phosphorus to the deepest portions of the lake.

Under Mother Nature’s system, thanks to the trees and surrounding vegetation, there is much less water flowing across the land surface towards the water. This water continues to be slowed and filtered by vegetation and rarely develops enough momentum cause erosion or carry a heavy sediment load. As the flowing water approaches a stream or lake, it typically flows into a heavily vegetated wetland buffer that acts as a large sponge to absorb the water and further slow the flows, allowing suspended sediments to settle. Some of the fine sediments adhere to the surface of the plant stems in the water column, a process known as “adsorption.” The end result is that the water finally reaching the lake is clean and clear.

Another important and often overlooked advantage to Mother Nature’s system is that much of the water entering the lake or feeder streams comes not over the surface of the land, but infiltrated through the ground. This not only filters and cleans the water but also chills it to the groundwater temperature, which around here is about 50°F (10°C). Contrast this to water running off a hot asphalt road or parking lot in the summertime, which can easily exceed 80°F. The cooler water is much healthier for the lake, enabling higher dissolved oxygen levels and much happier fish, especially trout and salmon. The standing biomass of trees sequesters carbon, including much of that in the roots.

So, how do we protect our watershed and maintain high water quality? One way is to protect as much forested land as possible within the watershed. This is one of the main drivers for 7 Lakes Alliance’s land conservation programs, especially the Kennebec Highlands Project, to which we have recently added nearly 1000 acres.

On land that is developed, the answer is to mimic Mother Nature’s system as much as possible in handling the stormwater runoff. At the Maine Lakes Resource Center, all the runoff is infiltrated into porous pavers, grass pavers, or infiltration trenches and filtered through a rain garden before entering the lake through the groundwater. Come visit the center to check it out. Hopefully we can give you some good ideas you can implement on your own property.

And pick up a map of our local hiking trails while you’re there so you can take a kid out hiking in the TREES-cooled forest. And don’t forget to contact the local Code Enforcement Officer before you cut any vegetation in the shoreland zone.
